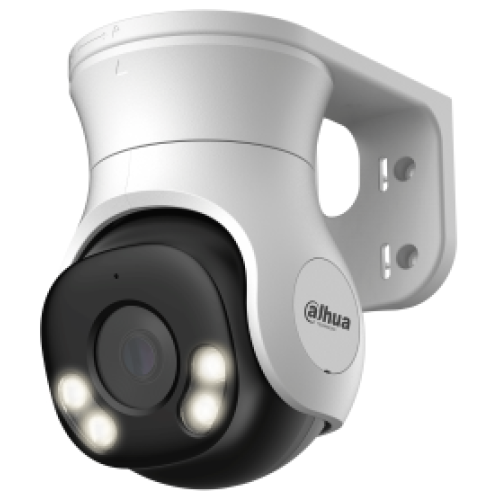

Dahua HDCVI 2.0MP PT Dual Illumination 2.8mm PT1200A-IL-A

* The parameters and datasheets below can only be applied to PT1200-IL-S6 series.* In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.Max. 30 [email protected] Dual Light.Smart Area Lighting.Pan & Tilt.40 m illumination distance.Super Adapt.Built-in Mic.Quick-to-install structure saves installation time.2.8 mm fixed lensIP66, 12 VDC.—CameraImage Sensor : 2 MP CMOSMax. Resolution : 1920 (H) × 1080 (V)Scanning System : ProgressiveElectronic Shutter Speed : PAL: 1/25 s–1/100,000 s; / NTSC: 1/30 s–1/100,000 sMin. Illumination : 0.01 [email protected] (Color, 30 IRE) / 0.001 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)S/N Ratio : >65 dBIllumination Distance : IR: 40 m (131.23 ft) / Warm light: 40 m (131.23 ft)Illuminator On/Off Control : AutoIlluminator Number : 4 (Warm light);4 (IR light)Angle Adjustment : Pan: 0°–355° / Tilt: 0°–90°*DO NOT adjust the angle of the main body or enclosure manuallyLensLens Type : Fixed-focalAuto Focus : NoLens Mount : M12Focal Length : 2.8 mmMax. Aperture : F2.0Field of View : 2.8 mm: H: 102°; V: 60°; D: 129°Iris Control : FixedClose Focus Distance : 2.8 mm: 0.5 m VideoVideo Frame Rate : CVI: / PAL: 1080p@25 fps; / NTSC: 1080p@30 fps; / AHD: / PAL: 1080p@25 fps; / NTSC: 1080p@30 fps; / TVI: / PAL: 1080p@25 fps; / NTSC: 1080p@30 fps; / CVBS: / PAL: 960 × 576H; / NTSC: 960 × 480HResolution : 1080p (1920 × 1080); 960H (960 × 576/960 × 480)Day/Night : Auto(ICR)/Color/B/WBLC : BLC; HLC; DWDRWDR : DWDRWhite Balance : Auto;ManualGain Control : Auto;ManualNoise Reduction : 3D NRIllumination Mode : Smart IR&WL; WL Mode; IR ModeMirror : YesPrivacy Masking : Off/On (8 areas, rectangle)CertificationCertifications : CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035PortVideo Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC portAudio Input : One channel built-in MicPowerPower Supply : 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)Power Consumption : Max 6.1 W (12 V DC, LED on)EnvironmentOperating Temperature : –40 °C to 60 °C (–40 °F to 140 °F)Operating Humidity : <95% (RH), non-condensingStorage Temperature : –40 °C to 60 °C (–40 °F to 140 °F)Storage Humidity : <95% (RH), non-condensingProtection : IP66Anti-corrosion Level : Basic ProtectionStructureCasing Material : PlasticProduct Dimensions : 92.9 mm × 91.3 mm × 130 mm Net Weight : 0.39 kg Gross Weight : 0.64 kg Installation : Wall mount; ceiling mount; vertical pole mount—
